Lithium Ion Battery 48V 30Ah

Unlock the full potential of your electric vehicle or industrial setup with our 48V 30Ah NMC Battery. This isn’t just a power source; it’s a high-capacity energy hub engineered for those who demand the longest possible range and rock-solid reliability. Delivering a massive 1440 Wh of energy, this battery is designed to replace traditional lead-acid systems, offering 70% less weight and significantly higher efficiency.

Housed in a premium MS (Mild Steel) Metal Box, this unit provides the structural integrity needed to survive vibrations, minor impacts, and the harsh environments of daily commuting or industrial operations.

Technical Datasheet

Sr No	Parameters	Values
1	Chemistry	NMC
2	Nominal Voltage	48V
3	Capacity Ah	30Ah
4	Energy Density	1440 Wh
5	Charging Voltage	54.6V
6	Lower Cut Off Voltage	36.4V
7	Recommended Charging Current	6A
8	Max Discharging current	30A
9	Peak Discharge Current	40A
10	Charging Protocol	CC/CV
11	Cycle Life @ 90% DOD	>1000 cycles @ 25°C
12	Charging Tempertaure	0°C to 45°C
13	Discharging Temperature	-10°C to 60°C
14	Storage Temperature	0°C to 45°C
15	Cell Balancing	Yes
16	BMS Type	Hardware BMS
17	Smart BMS with Bluetooth	Optional
18	CAN Communication	Optional
19	Protections	Over Charge Voltage and current, Over discharge Voltage and current, Over Charge Temperature, Over Discharge Temperature, Short Circuit
20	Charging/Discharging Port	Separate
21	Charging Port Type	C14 3 Pin Male
22	Discharging Port Type	Anderson SB50
23	Battery Cabinet	MS Metal Box
24	Battery Weight	10 kgs approx

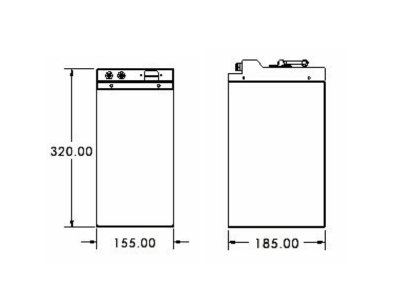

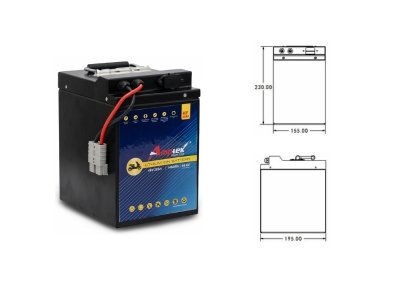

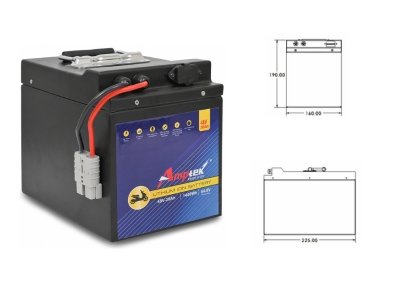

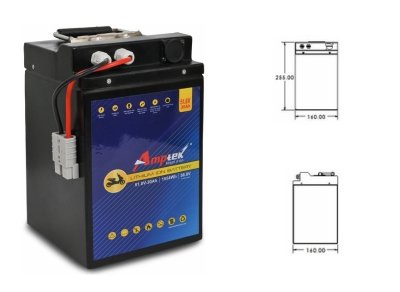

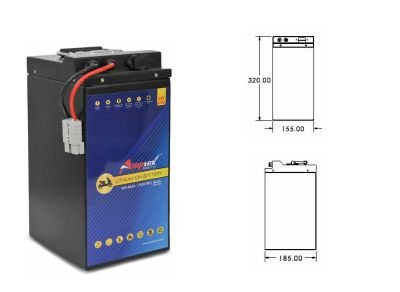

25	Dimensions (L x W x H)mm	(A) 155X195X230mm (Separate Port) (B) 160X225X190mm (Separate Port) (C) 185X205X200mm (Separate Port) (D) 220X180X170mm (Separate Port) (E) 160X160X255mm (Separate Port)
