Lithium Ion Battery 59.2V 24Ah
Elevate your energy storage with our premium 24Ah NMC (Nickel Manganese Cobalt) battery pack, engineered for those who demand extended range and uncompromising reliability. Delivering a massive 1420.8 Wh of energy density, this battery is the perfect upgrade for high-performance electric vehicles, specialized industrial machinery, and robust backup power systems.
Designed to survive the rigors of daily use, this pack offers a significant leap in capacity while maintaining a manageable 10kg form factor.
Technical Datasheet
| Sr No | Parameters | Values |
|---|---|---|
| 1 | Chemistry | NMC |
| 2 | Nominal Voltage | 59.2V |
| 3 | Capacity Ah | 24Ah |
| 4 | Energy Density | 1420.8 Wh |
| 5 | Charging Voltage | 67.2V |
| 6 | Lower Cut Off Voltage | 44.8V |
| 7 | Recommended Charging Current | 6A |
| 8 | Max Discharging current | 24A |
| 9 | Peak Discharge Current | 40A |
| 10 | Charging Protocol | CC/CV |
| 11 | Cycle Life @ 90% DOD | >1000 cycles @ 25°C |
| 12 | Charging Tempertaure | 0°C to 45°C |
| 13 | Discharging Temperature | -10°C to 60°C |
| 14 | Storage Temperature | 0°C to 45°C |
| 15 | Cell Balancing | Yes |
| 16 | BMS Type | Hardware BMS |
| 17 | Smart BMS with Bluetooth | Optional |
| 18 | CAN Communication | Optional |
| 19 | Protections | Over Charge Voltage and current, Over discharge Voltage and current, Over Charge Temperature, Over Discharge Temperature, Short Circuit |
| 20 | Charging/Discharging Port | Separate |
| 21 | Charging Port Type | C14 3 Pin Male |
| 22 | Discharging Port Type | Anderson SB50 |
| 23 | Battery Cabinet | MS Metal Box |
| 24 | Battery Weight | 10 kgs approx |

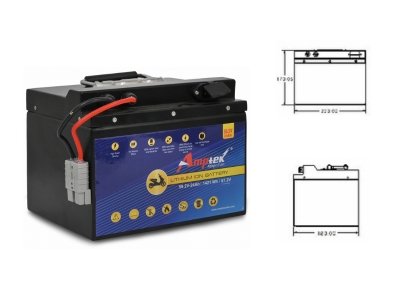

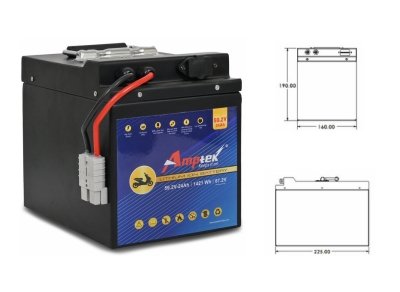

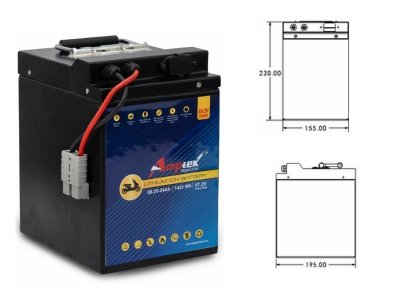

| 25 | Dimensions (L x W x H)mm | (A) 155X195X230mm (Separate Port) (B) 160X225X190mm (Separate Port) (C) 220X180X170mm (Separate Port) |
