Lithium Ion Battery 59.2V 30Ah
Power your electric vehicles and industrial equipment with our premium series of NMC (Nickel Manganese Cobalt) Lithium-Ion battery packs. Available in 24Ah, 26Ah, and 30Ah configurations, these batteries are engineered to deliver high energy density, long-range performance, and industrial-grade durability.
Whether you are upgrading an e-scooter or powering complex machinery, this series provides a versatile range of capacities (up to 1776 Wh) housed in a rugged MS Metal Box cabinet for maximum protection.
Technical Datasheet
| Sr No | Parameters | Values |
|---|---|---|
| 1 | Chemistry | NMC |
| 2 | Nominal Voltage | 59.2V |
| 3 | Capacity Ah | 30Ah |
| 4 | Energy Density | 1776 Wh |
| 5 | Charging Voltage | 67.2V |
| 6 | Lower Cut Off Voltage | 44.8V |
| 7 | Recommended Charging Current | 6A |
| 8 | Max Discharging current | 30A |
| 9 | Peak Discharge Current | 40A |
| 10 | Charging Protocol | CC/CV |
| 11 | Cycle Life @ 90% DOD | >1000 cycles @ 25°C |
| 12 | Charging Tempertaure | 0°C to 45°C |
| 13 | Discharging Temperature | -10°C to 60°C |
| 14 | Storage Temperature | 0°C to 45°C |
| 15 | Cell Balancing | Yes |
| 16 | BMS Type | Hardware BMS |
| 17 | Smart BMS with Bluetooth | Optional |
| 18 | CAN Communication | Optional |
| 19 | Protections | Over Charge Voltage and current, Over discharge Voltage and current, Over Charge Temperature, Over Discharge Temperature, Short Circuit |
| 20 | Charging/Discharging Port | Separate |
| 21 | Charging Port Type | C14 3 Pin Male |
| 22 | Discharging Port Type | Anderson SB50 |
| 23 | Battery Cabinet | MS Metal Box |
| 24 | Battery Weight | 11.5 kgs approx |

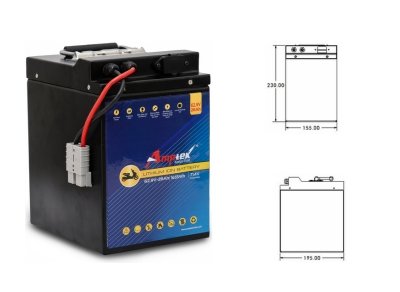

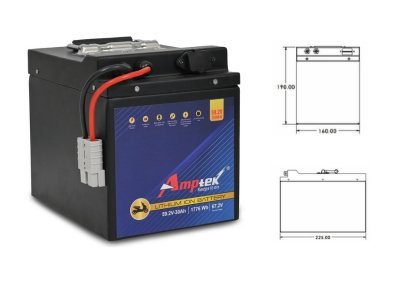

| 25 | Dimensions (L x W x H)mm | (A) 155X195X230mm (Separate Port) (B) 160x225x190mm (Separate Port) (C) 225X185X195mm (Separate Port) (D) 160X235X190mm (Separate Port) (E) 110X205X380mm (Same Port) |
