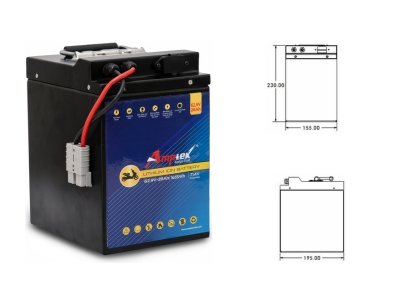

Lithium Ion Battery 62.9V 26Ah

Our Range

Fusion Power Systems is an ISO 9001:2015 and ISO 14001:2015 certified enterprise in India that designs, develops, manufactures & supplies customised energy storage Lithium-ion battery solutions for applications like Mobility, Solar, Telecom and specialised requirements, under its brand Amptek.

Amptek is one of the leading battery brands in the country and offers the widest range of models in its category, complying with IEC standards. The company has a fully equipped & integrated battery pack production facility in India with an ultra-modern assembly line. It has a state-of-the-art R&D and Quality testing facility that has helped it achieve the highest levels of Customer Satisfaction.

Lithium Ion Battery 62.9V 26Ah

Power your electric mobility and high-demand industrial systems with our flagship series of Nickel Manganese Cobalt (NMC) battery modules. This lineup is engineered for users who require a high energy-to-weight ratio, offering a wide range of capacities from 21Ah up to 45Ah. Delivering up to 2664 Wh of clean, efficient energy, these batteries are the ultimate solution for professional-grade power applications.

Technical Datasheet

Sr No	Parameters	Values
1	Chemistry	NMC
2	Nominal Voltage	62.9V
3	Capacity Ah	26Ah
4	Energy Density	1635.4 Wh
5	Charging Voltage	71.4V
6	Lower Cut Off Voltage	47.6V
7	Recommended Charging Current	6A
8	Max Discharging current	26A
9	Peak Discharge Current	40A
10	Charging Protocol	CC/CV
11	Cycle Life @ 90% DOD	>1000 cycles @ 25°C
12	Charging Tempertaure	0°C to 45°C
13	Discharging Temperature	-10°C to 60°C
14	Storage Temperature	0°C to 45°C
15	Cell Balancing	Yes
16	BMS Type	Hardware BMS
17	Smart BMS with Bluetooth	Optional
18	CAN Communication	Optional
19	Protections	Over Charge Voltage and current, Over discharge Voltage and current, Over Charge Temperature, Over Discharge Temperature, Short Circuit
20	Charging/Discharging Port	Separate
21	Charging Port Type	C14 3 Pin Male
22	Discharging Port Type	Anderson SB50
23	Battery Cabinet	MS Metal Box
24	Battery Weight	11 kgs approx
25	Dimensions (L x W x H)mm	(A) 155X195X230 (Separate Port) (B) 160X225X190 (Separate Port) (C) 110X205X380 (Same Port) (D) 225X185X195 (Separate Port) (E) 160X235X190 (Separate Port)
