Fusion Power Systems and Amptek provide the high-quality, sustainable energy storage solutions that drive the mobility, solar, and industrial sectors forward.
Our Range
Fusion Power Systems is an ISO 9001:2015 and ISO 14001:2015 certified enterprise in India that designs, develops, manufactures & supplies customised energy storage Lithium-ion battery solutions for applications like Mobility, Solar, Telecom and specialised requirements, under its brand Amptek.
Amptek is one of the leading battery brands in the country and offers the widest range of models in its category, complying with IEC standards. The company has a fully equipped & integrated battery pack production facility in India with an ultra-modern assembly line. It has a state-of-the-art R&D and Quality testing facility that has helped it achieve the highest levels of Customer Satisfaction.
Lithium Ion Battery 74V 26Ah
Elevate your power systems with our flagship series of Nickel Manganese Cobalt (NMC) battery modules. Engineered for users who require maximum energy density and industrial-grade reliability, this lineup offers a comprehensive range of capacities from 21Ah to 45Ah. With energy outputs scaling up to 2830.5 Wh, these batteries provide a robust solution for high-performance electric mobility, solar storage, and demanding industrial applications.
Technical Datasheet
| Sr No | Parameters | Values |
|---|---|---|
| 1 | Chemistry | NMC |
| 2 | Nominal Voltage | 72V |
| 3 | Capacity Ah | 26Ah |
| 4 | Energy Density | 1924 Wh |
| 5 | Charging Voltage | 84V |
| 6 | Lower Cut Off Voltage | 56V |
| 7 | Recommended Charging Current | 6A |
| 8 | Max Discharging current | 20A |
| 9 | Peak Discharge Current | 40A |
| 10 | Charging Protocol | CC/CV |
| 11 | Cycle Life @ 90% DOD | >1000 cycles @ 25°C |
| 12 | Charging Tempertaure | 0°C to 45°C |
| 13 | Discharging Temperature | -10°C to 60°C |
| 14 | Storage Temperature | 0°C to 45°C |
| 15 | Cell Balancing | Yes |
| 16 | BMS Type | Hardware BMS |
| 17 | Smart BMS with Bluetooth | Optional |
| 18 | CAN Communication | Optional |
| 19 | Protections | Over Charge Voltage and current, Over discharge Voltage and current, Over Charge Temperature, Over Discharge Temperature, Short Circuit |
| 20 | Charging/Discharging Port | Separate |
| 21 | Charging Port Type | C14 3 Pin Male |
| 22 | Discharging Port Type | Anderson SB50 |
| 23 | Battery Cabinet | MS Metal Box |
| 24 | Battery Weight | 13 kgs approx |

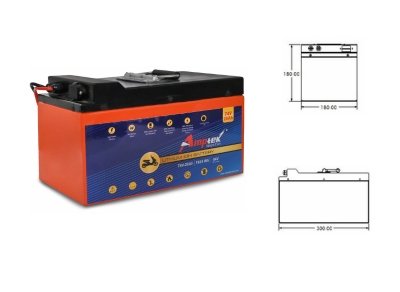

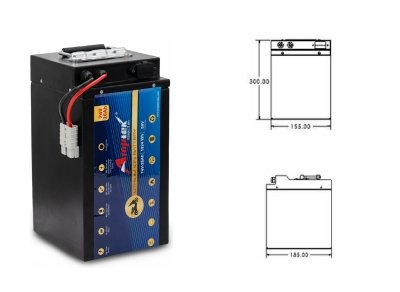

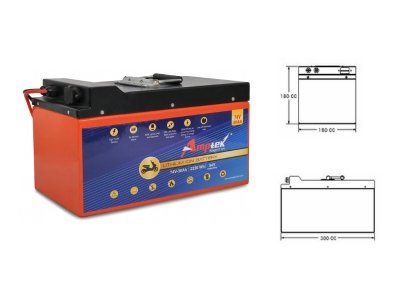

| 25 | Dimensions (L x W x H)mm | 180X300X180 (Separate Port) 155x185x300 (Separate Port) 153X202X315 (Separate Port) |
